Measurement properties of quality assessment tools for studies of diagnostic accuracy
Visits
235
Mark A. Kaizika,
Corresponding author
m.kaizik@student.unsw.edu.au

Corresponding author at: Bend+Mend | Physio+Pilates, Level 7, 4 Martin Place, Sydney, NSW 2000, Australia.
, Alessandra N. Garciab, Mark J. Hancockc, Robert D. Herberta,d
a School of Medical Sciences, Faculty of Medicine, University of New South Wales, Sydney, Australia
b Duke University Division of Physical Therapy, Duke Clinical Research Institute, North Carolina, USA
c Faculty of Medicine and Health Sciences, Macquarie University, Sydney, Australia
d Neuroscience Research Australia (NeuRA), Sydney, Australia
Highlights

  • First head-to-head comparison of QUADAS, QUADAS-2, DAQS measurement properties.

  • Inter-tester reliability of individual items of the tools was poor.

  • Summary scores were imprecise and convergent validity was often low.

  • The quality of the included studies was mixed.

  • A new quality assessment tool should exclude items relating to generalizability.

This item has received
235
Visits
Article information
Abstract
Full Text
Bibliography
Download PDF
Statistics
Figures (1)
Tables (4)
Table 1. Summary of published evaluations of the measurement properties of QUADAS, QUADAS-2 and DAQS.
Table 2. Between-reviewer reliability for each item of QUADAS.
Table 3. Between-reviewer reliability for each item of QUADAS-2.
Table 4. Between-reviewer reliability for each item of DAQS.
Show moreShow less
Abstract
Objectives

To determine the reliability, internal consistency, measurement error, convergent validity, and floor and ceiling effects of three quality assessment tools commonly used to evaluate the quality of diagnostic test accuracy studies in physical therapy. A secondary aim was to describe the quality of a sample of diagnostic accuracy studies.

Study design and setting

50 studies were randomly selected from a comprehensive database of physical therapy-relevant diagnostic accuracy studies. Two reviewers independently rated each study with the Quality Assessment of Diagnostic Accuracy Studies (QUADAS), Quality Assessment of Diagnostic Accuracy Studies 2 (QUADAS-2) and Diagnostic Accuracy Quality Scale (DAQS) tools in random sequence.

Results

Only 7% of QUADAS items, 14% of QUADAS-2 items, and 33% of DAQS items had at least moderate inter-rater reliability (kappa>0.40). Internal consistency and convergent validity measures were acceptable (>0.70) in 33% and 50% of cases respectively. Floor or ceiling effects were not present in any tool. The quality of studies was mixed: most avoided case–control sampling strategies and used the same reference standard on all subjects, but many failed to enroll a consecutive or random sample of subjects or provide confidence intervals about estimates of diagnostic accuracy.

Conclusion

The QUADAS, QUADAS-2 and DAQS tools provide unreliable estimates of the quality of studies of diagnostic accuracy in physical therapy.

Keywords:
Clinimetrics
Physical therapy
Psychometrics
Reliability
Full Text
Introduction

Diagnostic tests are used in clinical practice to identify pathology and guide decisions such as starting, stopping or modifying treatment.1 Broadly across medicine,2 as well as more specifically in physical therapy,3 the number of diagnostic test accuracy studies is increasing. The methodological quality of these studies is largely unknown.

Numerous quality assessment tools have been developed to evaluate the quality of diagnostic test accuracy studies.4 In 2005, Whiting and colleagues5 identified 67 tools to evaluate the quality of primary diagnostic test accuracy studies. Very few (6 of 67) provided a clear definition of what quality was or what aspects of quality the tool was designed to evaluate.

In physical therapy, the Quality Assessment of Diagnostic Accuracy Studies (QUADAS) tool6 has been used frequently to evaluate quality of primary diagnostic test accuracy studies, particularly for systematic reviews (e.g. [7,8]). A second iteration of this tool, the Quality Assessment of Diagnostic Accuracy Studies 2 (QUADAS-2),9 has also been used frequently in systematic reviews of physical therapy-related diagnostic tests.10,11 A third tool, the Diagnostic Accuracy Quality Scale (DAQS),12 was designed specifically for studies of the diagnostic accuracy of clinical examinations rather than laboratory or imaging tests.

These three tools have undergone varying degrees of evaluation. Table 1 provides a summary of the literature evaluating the measurement properties of these three tools. Many of the tools’ properties have not been investigated and findings about the tools’ properties vary between studies. Reports of head-to-head comparisons of the measurement properties of these tools have not been published.

Table 1.

Summary of published evaluations of the measurement properties of QUADAS, QUADAS-2 and DAQS.

Measurement property  QUADAS  QUADAS-2  DAQS
Reliability: interrater  kappa=0.65, %agreement=80%16; kappa=0.22, %agreement=69%4; kappa=0.1213; %agreement=86%15; Summary score ICC2,1=0.91 (95% CI 0.85–0.9514  Interrater reliability varied considerably with better agreement on “Concerns regarding applicability” than on “Risk of bias” parts9; kappa=0.8935  –
Reliability: internal consistency  Cronbach's α=0.9614  –  –
Measurement error  –  –  –
Construct validity  Excellent14  –  –
Floor/ceiling effects  –  –  –

Most of the evaluations of these tools were conducted during reviews of studies of specific pathologies or populations.9,13–16 A broader review – of systematic reviews of diagnostic test accuracy studies in the subdiscipline of musculoskeletal physical therapy – was recently undertaken.14 However, only the QUADAS tool was assessed in that review and the tool's reliability was evaluated using data from two different reviews of the same primary studies.14 It is unclear which quality assessment tool will perform best when applied to diagnostic test accuracy studies relevant to physical therapy.

The objective of this study is, therefore, to review the measurement properties of QUADAS, QUADAS-2 and DAQS applied to diagnostic test accuracy studies relevant to physical therapy. The study investigates reliability, internal consistency, measurement error, convergent validity, and floor and ceiling effects. A secondary aim is to report on the quality of a representative set of diagnostic test accuracy studies relevant to physical therapy.

MethodsData sources

Studies of diagnostic test accuracy were randomly selected from those identified in a previous systematic review (n=984; see Appendix 1 for search syntax) of all diagnostic test accuracy studies relevant to physical therapy (manuscript under review).3 A sample size of 50 was selected because this is considered adequate when assessing most measurement properties of quality assessment tools.17

Study eligibility

Papers were included in the previous systematic review3 if they were full primary research papers investigating an index test a physical therapist would perform themselves. This excluded papers studying, for example, laboratory or imaging tests, as such tests are typically not performed by physical therapists. Tests typically performed by physical therapists include physical examination (e.g. Lachman's test), questionnaires (e.g. the Osteoporosis Risk Assessment Instrument), and health technologies (e.g. spirometry). Studies were included in the review only if they investigated patients and pathologies typically seen by physical therapists in clinical practice. An additional criterion for inclusion was that studies had to be related to musculoskeletal, sports or orthopaedic physical therapy.18 Papers in languages other than English were excluded.

Quality assessment tools

The QUADAS and DAQS tools comprise 14 and 21 items respectively. Items consist of questions to be scored as “Yes”, “No” or “Unclear”. Questions relate to patient sampling; reference standard and index test description, application and interpretation; reference standard quality; timing of tests; and reporting of the flow of subjects through the study. Additionally, DAQS asks more specific questions on sampling, description of study site and assessors, and statistical reporting. DAQS is intended to produce a quality score whereas QUADAS and QUADAS-2 are not. QUADAS-2 comprises four sections: patient selection; index test; reference standard; and flow and timing. Each section rates the study's risk of bias, and each of the first three sections rates study applicability. Ratings are either “Low”, “High” or “Unclear”. Signaling questions help guide the rater if needed.

Reviewer consensus

Two physical therapy researchers with clinical experience in musculoskeletal, sports and orthopaedic primary care each independently reviewed the 50 studies (Supplemental material) using all three quality rating tools. One researcher (MK) had 22 years of clinical experience, a Masters qualification, and had previously systematically reviewed diagnostic test accuracy studies related to physical therapy. The other researcher (AG) had 6 years of clinical experience, a doctoral qualification, and 4 years of experience researching musculoskeletal disorders. Both reviewers undertook approximately 20h of self-directed learning. This comprised reading through background documents describing each tool6,9,12,19; reviewing past papers that had used these tools; and studying the tools themselves. Prior to data extraction, both reviewers independently piloted the three quality rating tools on three studies similar to the studies in the review9 and then compared results and discussed the interpretation of different criteria.20

For the purpose of this study and to enable comparison between tools, we limited the analysis to one index test from each study.9,19 The reviewers conferred to select the index test.

Use of QUADAS-2 requires that the review question be nominated. It was agreed prior to data extraction that for each study the common review question would be “How accurate are diagnostic tests that physical therapists conduct in musculoskeletal physical therapy primary care?”. We chose to retain all QUADAS-2 signaling questions as it was considered that they all applied to this review.9

Data extraction process

Each reviewer independently rated the 50 studies in random order. The quality assessment tools were also applied in a random sequence. Ratings for each item of each tool were collected for each study, as well as ratings for each signaling question in QUADAS-2. If more than one reference standard was used, raters independently nominated the main reference standard for each study and rated the study accordingly.

Data analysis

Data were analyzed using Stata v14.2.

Summary scores

Of the three tools, DAQS is the only tool that generates a summary score.12 Both QUADAS and QUADAS-2 were intentionally designed to not produce a summary score of study quality.6,9 We were, nonetheless, interested in the properties of summary scores, so we calculated summary scores using an adaptation of the scoring scheme used by Whiting and colleagues21 which weighted all items equally: (1) “No”=0, “Unclear”=1, “Yes”=2 (for QUADAS and DAQS items); (2) “High”=0, “Unclear”=1, “Low”=2 (for QUADAS-2 “Risk of bias” and “Concerns regarding applicability” judgments).

Reliability and measurement error

Our primary interest was in the inter-tester reliability of the individual tool items. Kappa was calculated for individual questions with categorical outcomes.22 Kappa was interpreted as <0.00 poor; 0.00–0.20 slight; 0.21–0.40 fair; 0.41–0.60 moderate; 0.61–0.80 substantial; and 0.81–1.00 almost perfect.23 Percentage agreement for individual questions and average percentage agreement for each tool's full set of questions was also calculated.20 A two-way random effects, absolute agreement, single rater/measurement intraclass correlation model (ICC2,1) was used to measure consistency or homogeneity of summary scores for each tool.24 ICC was interpreted as: <0.40 poor; 0.40–0.75 moderate; and >0.75 excellent.25

Both the standard error of measurement (SEM) and the smallest detectable change (SDC) were used to describe between-rater error of the summary scores for each tool.17,26

Internal consistency

Internal consistency was assessed using Cronbach's alpha,27 calculated separately for each rater for each tool. We considered the rating had acceptable internal consistency when Cronbach's alpha was between 0.70 and 0.95.17,27

Convergent validity

Convergent validity was assessed for each rater by comparing the correlations between the summary scores of the three tools. A Pearson's correlation coefficient >0.70 is considered acceptable convergent validity.28

Floor and ceiling effects

Floor or ceiling effects were considered to be present if >15% of studies achieved the lowest or highest possible score, respectively.17 This was calculated separately for each rater for each tool.

Results

Of the 50 randomly selected studies, 46 (92%) were relevant to musculoskeletal physical therapy, 22 (44%) were relevant to orthopaedics, and 2 (4%) were relevant to sports. Often a single study was classified in several ways. Thus some papers were also relevant to paediatrics (8%), continence and women's health (6%), and gerontology (2%). All papers were published between 1984 and 2015.

Main reference standard

In 8 of the 50 papers (16%), the 2 raters independently selected different reference standards for the study.

Reliability and measurement error

Tables 2–4 show reliability of the three tools. Kappa scores were ≤0.40 (below moderate reliability) for 13 of 14 (93%) QUADAS items and 14 of 21 (67%) DAQS items. For QUADAS-2, kappa was ≤0.40 for 6 of the 7 (86%) judgment items, or for 14 of 18 (78%) items if signaling questions were included.

Table 2.

Between-reviewer reliability for each item of QUADAS.

Item  Yes  Unclear  No  %agree  Kappa  95% CI  Interpretation23
59%  2%  39%  38%  0.09  0.03–0.21  Slight
68%  16%  16%  54%  0.14  0.00–0.33  Slight
85%  3%  12%  76%  0.12  −0.04 to 0.28  Slight
34%  64%  2%  58%  0.18  −0.01 to 0.40  Slight
89%  1%  10%  82%  0.10  −0.11 to 0.49  Slight
84%  2%  14%  72%  0.05  −0.09 to 0.30  Slight
88%  6%  6%  86%  0.37  0.00 to 0.74  Fair
76%  0%  24%  72%  0.29  0.05–0.55  Fair
67%  2%  31%  56%  0.06  −0.19 to 0.30  Slight
10  68%  30%  2%  66%  0.25  0.02–0.51  Fair
11  33%  56%  11%  70%  0.48  0.27–0.67  Moderate
12  59%  36%  5%  18%  0.00  –  Slight
13  16%  0%  84%  80%  0.31  0.00–0.63  Fair
14  84%  7%  9%  72%  0.02  −0.13 to 0.32  Slight
All        64%

Abbreviation: %agree, percentage agreement.

Table 3.

Between-reviewer reliability for each item of QUADAS-2.

Item  Yes/Low  Unclear  No/High  %agree  Kappa  95% CI  Interpretation23
Domain 1 Risk of bias
Signaling question 1  36%  2%  62%  82%  0.63  0.40–0.84  Substantial
Signaling question 2  76%  0%  24%  88%  0.67  0.43–0.91  Substantial
Signaling question 3  75%  22%  3%  58%  0.07  −0.08 to 0.27  Slight
Judgment  26%  15%  59%  64%  0.37  0.18 0.57  Fair
Domain 1 Concerns regarding applicability
Judgment  61%  11%  28%  40%  0.10  0.02–0.24  Slight
Domain 2 Risk of bias
Signaling question 1  73%  26%  1%  72%  0.30  0.01–0.60  Fair
Signaling question 2  66%  17%  17%  58%  0.19  0.02–0.40  Slight
Judgment  52%  39%  9%  50%  0.16  −0.02 to 0.37  Slight
Domain 2 Concerns regarding applicability
Judgment  85%  14%  1%  74%  0.10  0.00–0.34  Slight
Domain 3 Risk of bias
Signaling question 1  85%  3%  12%  74%  0.06  −0.07 to 0.20  Slight
Signaling question 2  35%  53%  12%  68%  0.46  0.24–0.66  Moderate
Judgment  32%  46%  22%  70%  0.54  0.35–0.72  Moderate
Domain 3 Concerns regarding applicability
Judgment  83%  15%  2%  66%  0.00  –  Slight
Domain 4 Risk of bias
Signaling question 1  34%  64%  2%  58%  0.18  −0.01 to 0.43  Slight
Signaling question 2  85%  2%  13%  82%  0.31  −0.03 to 0.66  Fair
Signaling question 3  88%  2%  10%  76%  0.00  –  Slight
Signaling question 4  68%  13%  19%  62%  0.23  0.01–0.49  Fair
Judgment  22%  50%  28%  56%  0.33  0.14–0.51  Fair
All        67%

Abbreviation: %agree, percentage agreement.

Table 4.

Between-reviewer reliability for each item of DAQS.

Item  Yes  Unclear  No  %agree  kappa  95% CI  Interpretation23
35%  1%  64%  86%  0.70  0.50–0.88  Substantial
53%  1%  46%  56%  0.16  −0.10 to 0.39  Slight
4%  0%  96%  100%  1.00  –  Almost perfect
74%  0%  26%  84%  0.59  0.30–0.82  Moderate
95%  1%  4%  90%  0.00  –  Slight
68%  0%  32%  60%  0.18  −0.01 to 0.41  Slight
96%  3%  1%  92%  -0.02  −0.04 to 0.00  Poor
80%  0%  20%  68%  0.14  0.00–0.37  Slight
76%  2%  22%  62%  -0.01  −0.22 to 0.26  Poor
10  20%  72%  8%  76%  0.46  0.24–0.66  Moderate
11  66%  32%  2%  62%  0.20  −0.03 to 0.46  Slight
12  34%  64%  2%  58%  0.18  0.01–0.41  Slight
13  77%  3%  20%  82%  0.51  0.22–0.75  Moderate
14  66%  1%  33%  58%  0.11  −0.12 to 0.37  Slight
15  86%  3%  11%  78%  0.16  −0.07 to 0.42  Slight
16  33%  55%  12%  68%  0.45  0.23–0.63  Moderate
17  56%  3%  41%  62%  0.30  0.12–0.52  Fair
18  38%  0%  62%  80%  0.58  0.36–0.79  Moderate
19  77%  4%  19%  66%  0.10  −0.12 to 0.39  Slight
20  68%  1%  31%  60%  0.18  0.00–0.40  Slight
21  39%  1%  60%  56%  0.22  0.07–0.43  Fair
All        72%

Abbreviation: %agree, percentage agreement.

Of the 12 items across all tools with kappa >0.40 (interpreted as moderate reliability or above), 5 related to the reference standard (QUADAS item #11; QUADAS-2 Domain 3 Risk of bias Signaling question 2 and Risk of bias Judgment; DAQS items #13 and #16); 5 related to patient sampling or enrolment (QUADAS-2 Domain 1 Risk of bias Signaling questions 1 and 2; DAQS items #1, #3 and #4); and 2 related to statistical reporting (DAQS items #10 and #18). Of the 7 items across all the tools asking raters about the clarity or extent of descriptions (“clearly described”, “sufficiently described”, “adequately described”), kappa values ranged from −0.01 to 0.22, all below a moderate rating. Two questions (QUADAS item #14 and DAQS item #19) that could have been accurately answered as “not applicable” in several studies both had kappa ≤0.10.

All QUADAS-2 “Concerns regarding applicability” judgments had kappa values ≤0.10 and were rated as slight. QUADAS items #1 and #2, which relate to variability and could affect generalizability,6 had kappa values of 0.09 and 0.14 respectively, and were rated as slight.

The average agreement between the two raters was 64% for QUADAS, 67% for QUADAS-2, and 72% for DAQS.

The inter-tester reliability of the QUADAS summary scores was poor (ICC2,1=0.27; 95% CI −0.02 to 0.52) as was the inter-tester reliability of the QUADAS-2 summary scores (ICC2,1=0.36; 95% CI 0.08–0.59). Inter-tester reliability of the DAQS summary score was moderate (ICC2,1=0.45; 95% CI 0.15–0.66). The 0–28 point QUADAS tool had an SEM of 2.7 points; the 0–14 point QUADAS-2 tool had an SEM of 1.8 points; and the 0–42 point DAQS tool had an SEM of 3.6 points. The SDC was 7.4 points for QUADAS, 4.9 points for QUADAS-2 and 9.9 points for DAQS.

Internal consistency

The internal consistency of QUADAS was less than acceptable for both Rater 1 (α=0.60; item #12 was constant in the sample so was dropped from the analysis) and Rater 2 (α=0.45).27 QUADAS-2 internal consistency was acceptable for Rater 1 (α=0.70; Domain 3 Concerns regarding applicability judgment was constant in the sample so was dropped from the analysis) and Rater 2 (α=0.76; Domain 4 Risk of bias Signaling question 3 was constant in the sample so was dropped from the analysis) while it was rated as less than acceptable for both raters of DAQS (Rater 1: α=0.58; item #5 was constant in the sample so was dropped from the analysis; Rater 2: α=0.61).

Convergent validity

Fig. 1 shows the relationships between each rater's summary scores. Correlations ranged from 0.63 to 0.77. Acceptable convergent validity was found for 3/6 of the pairs of rating tools: r=0.73 for QUADAS vs DAQS (Rater 1); r=0.77 for QUADAS vs DAQS (Rater 2); and r=0.76 for QUADAS-2 vs DAQS (Rater 1).

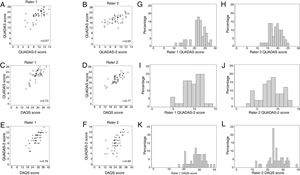

Figure 1.

Scatterplots of each rater's summary scores from each pair of rating tools (A–F) and score frequencies for each rating tool as a percentage of the total for each rater (G–L).

(0.29MB).
Floor and ceiling effects

Fig. 1 shows the score frequencies for each tool for each rater. Neither floor nor ceiling effects were present in any rating tools.

Study quality

Mean summary scores (and percentages) of a possible score of 28 for QUADAS were 21.9 (78%) for Rater 1 and 19.0 (68%) for Rater 2; of a possible score of 14 for QUADAS-2 were 9.8 (70%) for Rater 1 and 8.4 (60%) for Rater 2; and of a possible score of 42 for DAQS were 28.8 (69%) for Rater 1 and 25.8 (61%) for Rater 2. Tables 2–4 describe the total percentage of ratings for each item of each tool but we specifically report on the typical quality of the sample of studies by considering only items that had at least moderate kappa reliability (kappa>0.40). Interpretation of reference standard results without knowledge of index test results was rated as “Unclear” in 56% (QUADAS item #11), 55% (DAQS item #16) and 53% (QUADAS-2 Domain 3 Risk of bias Signaling question 2) of studies. The enrolment of a consecutive or random sample of patients was rated as “No” in 64% (DAQS item #1) and 62% (QUADAS-2 Domain 1 Risk of bias Signaling question 1) of studies. The avoidance of a case–control sampling strategy was rated as “Yes” in 76% (QUADAS-2 Domain 1 Risk of bias Signaling question 2) and 74% (DAQS item #4) of studies.

Other reliable items from the DAQS tool showed 77% of the studies were rated “Yes” for having all patients tested with the same reference standard (DAQS item #13) and 72% of studies were rated “Unclear” as to whether the index test demonstrated sufficient reliability (DAQS item #10). Inclusion of an adequate sample size derived from a power analysis (DAQS item #3) was rated as “No” in 96% of studies. In 62% of studies, the provision of confidence intervals of the diagnostic accuracy values (DAQS item #18) was rated as “No”.

DiscussionStatement of principal findings

To our knowledge, this is the first study to conduct a head-to-head comparison of measurement properties of QUADAS, QUADAS-2 and DAQS. The study shows that inter-tester reliability of individual tool items is poor. The least reliable items asked raters about the clarity or extent of descriptions, could often be accurately answered as “not applicable”, or related to the generalizability of study results. Inter-tester reliability of the tools’ summary scores is moderate or poor. The large SEM for all the tools implies poor reliability and precision of summary scores. Although floor or ceiling effects were not present in any tool, at least half of the measures of internal consistency and convergent validity did not reach an acceptable level.

The quality of the sample of rated studies was mixed. Most studies avoided case–control designs which overestimate diagnostic test performance,29 but more than half the studies did not enroll consecutive or random samples. Over three-quarters of studies tested all subjects with the same reference standard, although it was unclear in about half of all studies whether the reference standard was interpreted without knowledge of the results of the index test. More than half the studies did not provide confidence intervals about estimates of diagnostic test accuracy.

Strengths and weaknesses of the study

A strength of this study is that we conducted head-to-head comparisons of multiple measurement properties of the three scales. To our knowledge, most of these measurement properties of the three scales have not been examined before. This study also gives us an insight into the typical methodological quality of diagnostic test accuracy studies related to physical therapy.

This study included an adequate number of primary diagnostic test accuracy studies.17 The studies were relevant to the discipline of physical therapy rather than just a specific pathology or population. The sample was randomly selected from a database thought to include most studies of the accuracy of diagnostic tests relevant to physical therapy. Only studies from three subdisciplines of physical therapy (musculoskeletal, sports and orthopaedics) were included in this study to accommodate the raters’ clinical experience.6 While this might restrict the generalizability of the findings, a recent study (manuscript under review)3 found that these three subdisciplines provide 83% of diagnostic test accuracy studies related to physical therapy. These results therefore allow us to infer how these tools may perform across a variety of subdisciplines within physical therapy.

Another strength of the study is that raters undertook ∼20h of self-directed learning to understand how to use the tools, piloted them on trial papers, and discussed interpretations before rating the papers to improve consensus.

A possible study limitation is that the analysis of total scores for QUADAS and QUADAS-2 may be considered inappropriate by some readers. The authors of the QUADAS and QUADAS-2 tools did not intend to calculate total scores.6,9 However, our belief is that even if users of QUADAS and QUADAS-2 do not formally calculate total scores they use informal impressions of the total scores to guide impressions of quality. Moreover, comparison of various measurement properties between the three rating scales required summary scores. Consequently, in this study, we used a scoring scheme previously used by one of the authors of the QUADAS and QUADAS-2 tools.21

Another limitation of this study was the inclusion only of studies written in English. Only 9% of diagnostic test accuracy studies relevant to physical therapy are reported in languages other than English.3 As this proportion is small it is unlikely to cause serious bias.

In 8 of 50 studies there was more than one reference standard and the raters did not agree on the main reference standard. As 51% of items in the three tools related to the reference standard (8 of 14 QUADAS items; 11 of 18 QUADAS-2 items; 8 of 21 DAQS items; 27 of 53 in total), this may have adversely affected reliability estimated in this study. A sensitivity analysis was therefore performed on the 42 studies for which there was reference standard consensus. That analysis yielded very similar findings to those reported above.

Unanswered questions and future research

This study has shown that the most widely used tools to rate diagnostic test accuracy studies in physical therapy are not reliable. The implication would appear to be that these tools should not be trusted to provide robust evidence of quality. The design of a tool that could reliably quantify study quality would be an important next step in assessing the evidence available for diagnostic tests relevant to physical therapy. Such a tool could incorporate the more reliable elements of the existing tools.

QUADAS items #1 and #2 are described by the original authors as relating to variability which may affect study result generalizability.6 QUADAS-2 authors created separate “Concerns regarding applicability” parts of the tool for each domain to help judge potential sources of variation,9 equating applicability with external validity30 or generalizability.31 In our study, items that related to the generalizability of study results had poor reliability. Moreover, as Schueler et al.31 argue, it is likely reviewers typically filter for applicable studies using eligibility criteria. To the extent that this is true, assessment of applicability is unnecessary. Clinicians who read diagnostic test accuracy studies are well placed to judge the generalizability of each study's results to their own practice.

Consequently, we recommend any new quality assessment tool should exclude items relating to generalizability of study results; reword items asking about clarity or extent of descriptions; reword items that could be rated as “not applicable” to only allow for available codes; and give clear instructions on how to deal with studies involving multiple index tests, reference standards or pathologies.

Accurate assessment of the methodological quality of diagnostic accuracy studies is difficult if reporting is inadequate.32 Whiting and colleagues6 note assessment of study quality is closely related to assessment of reporting quality. The Standards for Reporting of Diagnostic Accuracy (STARD) initiative aims to improve the reporting of diagnostic test accuracy studies so that potential for bias can be more easily evaluated.33,34

Conclusions

QUADAS, QUADAS-2 and DAQS are unreliable measures of the quality of diagnostic test accuracy studies in physical therapy. Moreover, to the extent of being able to accurately measure it, the quality of this type of study is typically mixed across various domains such as sampling methods, reference standard application and interpretation, and reporting of accuracy results.

Funding

This research did not receive any specific grant from funding agencies in the public, commercial, or not-for-profit sectors.

Conflicts of interest

The authors declare no conflicts of interest.

Appendix A
Supplementary data

The following is the supplementary data to this article:

References
[1]
B.W. Mol, J.G. Lijmer, J.L. Evers, P.M. Bossuyt.
Characteristics of good diagnostic studies.
Semin Reprod Med, 21 (2003), pp. 17-25
[2]
A.W.S. Rutjes, J.B. Reitsma, M. Di Nisio, N. Smidt, J.C. van Rijn, P.M.M. Bossuyt.
Evidence of bias and variation in diagnostic accuracy studies.
Can Med Assoc J, 174 (2006), pp. 469-476
[3]
M.A. Kaizik, M.J. Hancock, R.D. Herbert.
Systematic review of diagnostic test accuracy studies in physiotherapy. PROSPERO CRD42015025450.
[4]
W. Hollingworth, L.S. Medina, R.E. Lenkinski, et al.
Interrater reliability in assessing quality of diagnostic accuracy studies using the QUADAS tool. A preliminary assessment.
Acad Radiol, 13 (2006), pp. 803-810
[5]
P.F. Whiting, A.W. Rutjes, J. Dinnes, J.B. Reitsma, P.M. Bossuyt, J. Kleijnen.
A systematic review finds that diagnostic reviews fail to incorporate quality despite available tools.
J Clin Epidemiol, 58 (2005), pp. 1-12
[6]
P. Whiting, A.W.S. Rutjes, J.B. Reitsma, P.M.M. Bossuyt, J. Kleijnen.
The development of QUADAS: a tool for the quality assessment of studies of diagnostic accuracy included in systematic reviews.
BMC Med Res Methodol, 3 (2003), pp. 25
[7]
C. Cook, L. Mabry, M.P. Reiman, E.J. Hegedus.
Best tests/clinical findings for screening and diagnosis of patellofemoral pain syndrome: a systematic review.
Physiotherapy, 98 (2012), pp. 93-100
[8]
A.G. Schneiders, S.J. Sullivan, P.A. Hendrick, et al.
The ability of clinical tests to diagnose stress fractures: a systematic review and meta-analysis.
J Orthop Sports Phys Ther, 42 (2012), pp. 760-771
[9]
P.F. Whiting, A.W.S. Rutjes, M.E. Westwood, et al.
QUADAS-2: a revised tool for the quality assessment of diagnostic accuracy studies.
Ann Intern Med, 155 (2011), pp. 529-536
[10]
P.R. Beckenkamp, C.C. Lin, P. Macaskill, Z.A. Michaleff, C.G. Maher, A.M. Moseley.
Diagnostic accuracy of the Ottawa Ankle and Midfoot Rules: a systematic review with meta-analysis.
Br J Sports Med, 51 (2017), pp. 504-510
[11]
N. Hutting, G.G. Scholten-Peeters, V. Vijverman, M.D. Keesenberg, A.P. Verhagen.
Diagnostic accuracy of upper cervical spine instability tests: a systematic review.
Phys Ther, 93 (2013), pp. 1686-1695
[12]
C. Cook, J. Cleland, E. Hegedus, A. Wright, M.J. Hancock.
The creation of the diagnostic accuracy quality scale (DAQS).
J Man Manip Ther, 22 (2014), pp. 90-96
[13]
K. Bauwens, A. Ekkernkamp, D. Stengel.
QUADAS: early experience with a new methodological scoring tool for diagnostic meta-analyses.
Corroboree. Abstracts of the 13th Cochrane Colloquium,
[14]
N. Henschke, J. Keuerleber, M. Ferreira, C.G. Maher, A.P. Verhagen.
The methodological quality of diagnostic test accuracy studies for musculoskeletal conditions can be improved.
J Clin Epidemiol, 67 (2014), pp. 416-424
[15]
R. Mann, C.E. Hewitt, S.M. Gilbody.
Assessing the quality of diagnostic studies using psychometric instruments: applying QUADAS.
Soc Psychiatry Psychiatr Epidemiol, 44 (2009), pp. 300-307
[16]
P.F. Whiting, M.E. Weswood, A.W. Rutjes, J.B. Reitsma, P.N. Bossuyt, J. Kleijnen.
Evaluation of QUADAS, a tool for the quality assessment of diagnostic accuracy studies.
BMC Med Res Methodol, 6 (2006), pp. 9
[17]
C.B. Terwee, S.D. Bot, M.R. de Boer, et al.
Quality criteria were proposed for measurement properties of health status questionnaires.
J Clin Epidemiol, 60 (2007), pp. 34-42
[18]
Physiotherapy Evidence Database (PEDro).
Codes. Physiotherapy Evidence Database (PEDro).
[19]
P. Whiting, A. Rutjes, M. Westwood, et al.
Updating QUADAS: evidence to inform the development of QUADAS-2.
[20]
L.B. Mokkink, C.B. Terwee, D.L. Patrick, et al.
COSMIN checklist manual.
VU University Medical Center, (2018),
[21]
P.F. Whiting, R. Harbord, J. Kleijnen.
No role for quality scores in systematic reviews of diagnostic accuracy studies.
BMC Med Res Methodol, 5 (2005), pp. 19
[22]
J. Sim, C.C. Wright.
The kappa statistic in reliability studies: use, interpretation, and sample size requirements.
Phys Ther, 85 (2005), pp. 257-268
[23]
J.R. Landis, G.G. Koch.
The measurement of observer agreement for categorical data.
Biometrics, 33 (1977), pp. 159-174
[24]
H.C. de Vet, C.B. Terwee, D.L. Knol, L.M. Bouter.
When to use agreement versus reliability measures.
J Clin Epidemiol, 59 (2006), pp. 1033-1039
[25]
J.L. Fleiss, B. Levin, M.C. Paik.
The measurement of interrater agreement.
Statistical Methods for Rates and Proportions,
[26]
L.B. Mokkink, C.B. Terwee, D.L. Patrick, et al.
The COSMIN checklist for assessing the methodological quality of studies on measurement properties of health status measurement instruments: an international Delphi study.
Qual Life Res, 19 (2010), pp. 539-549
[27]
M. Tavakol, R. Dennick.
Making sense of Cronbach's alpha.
Int J Med Educ, 2 (2011), pp. 53-55
[28]
K.D. Carlson, A.O. Herdman.
Understanding the impact of convergent validity on research results.
Organ Res Methods, 15 (2010), pp. 17-32
[29]
J.G. Lijmer, B.W. Mol, S. Heisterkamp, et al.
Empirical evidence of design-related bias in studies of diagnostic tests.
JAMA, 282 (1999), pp. 1061-1066
[30]
P.F. Whiting, J.A.C. Sterne.
In response: the revised QUADAS-2 tool [letter].
Ann Intern Med, 156 (2012), pp. 323-324
[31]
S. Schueler, G.M. Schuetz, M. Dewey.
The revised QUADAS-2 tool [letter].
[32]
K.F. Schulz.
Empirical evidence of bias: dimensions of methodological quality associated with estimates of treatment effects in controlled trials.
JAMA, 273 (1995), pp. 408-412
[33]
P.M. Bossuyt, J.B. Reitsma, D.E. Bruns, et al.
The STARD statement for reporting studies of diagnostic accuracy: explanation and elaboration.
Ann Intern Med, 138 (2003), pp. W1-W12
[34]
J.F. Cohen, D.A. Korevaar, D.G. Altman, et al.
STARD 2015 guidelines for reporting diagnostic accuracy studies: explanation and elaboration.
BMJ Open, 6 (2016), pp. e012799
[35]
B. Lumbreras, M. Porta, S. Marquez, M. Pollan, L.A. Parker, I. Hernandez-Aguado.
QUADOMICS: an adaptation of the Quality Assessment of Diagnostic Accuracy Assessment (QUADAS) for the evaluation of the methodological quality of studies on the diagnostic accuracy of ‘-omics’-based technologies.
Clin Biochem, 41 (2008), pp. 1316-1325
Copyright © 2019. Associação Brasileira de Pesquisa e Pós-Graduação em Fisioterapia
Idiomas
Brazilian Journal of Physical Therapy

Subscribe to our newsletter

Article options
Tools
Supplemental materials
en pt
Cookies policy Política de cookies
To improve our services and products, we use "cookies" (own or third parties authorized) to show advertising related to client preferences through the analyses of navigation customer behavior. Continuing navigation will be considered as acceptance of this use. You can change the settings or obtain more information by clicking here. Utilizamos cookies próprios e de terceiros para melhorar nossos serviços e mostrar publicidade relacionada às suas preferências, analisando seus hábitos de navegação. Se continuar a navegar, consideramos que aceita o seu uso. Você pode alterar a configuração ou obter mais informações aqui.
